Troop/Crew

Blast Attenuation Seat

Protect forward and side-facing occupants from the effects of an IED or vehicle accident.

Troop / Crew Seats

Features

  • Troop/Crew Blast Attenuation Seat can be configured to mount to the ceiling, wall or floor as defined by Customer specification and the vehicle configuration.

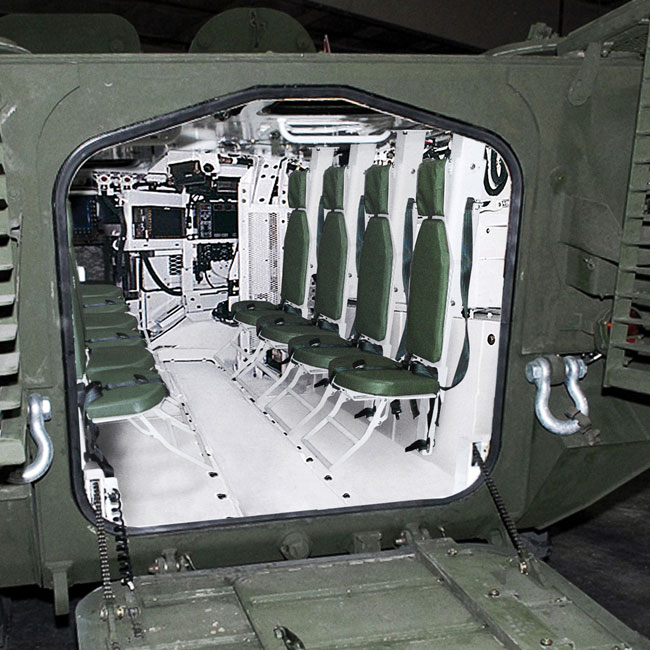

  • In use on multiple wheeled and tracked combat vehicles.
  • Can be integrated with an optional vehicle-based personnel cooling system, a blast sensor and floor mounted footpads for a complete crew survivability solution.
  • Recoverable Energy Attenuation System protects against both phases of the blast event – the initial “lift off” and subsequent “slam down”
  • Can be customized with the features below to ensure optimal protection and comfort.
  • Configurable:

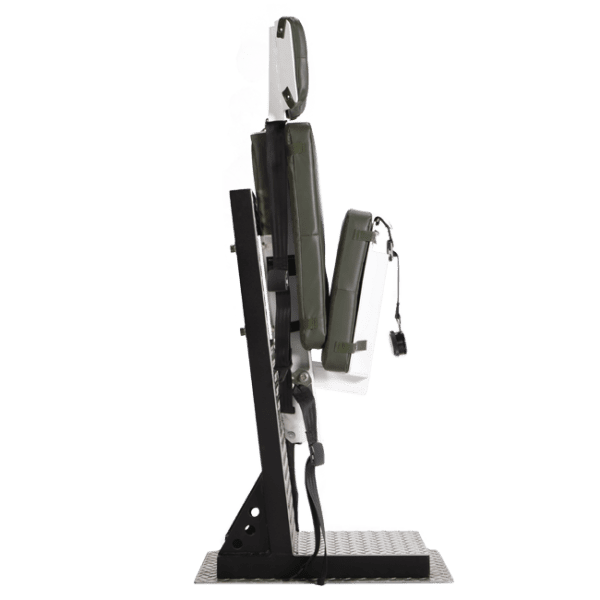

    • Raising Seat Pan to facilitate egress and ingress
    • Lowering Seat Back to access storage behind seat or to mount a litter (stretcher)
    • Foot Rest to isolate the feet from the floor to protect the feet and lower limbs
  • Can accommodate 5th percentile female to 95th percentile male

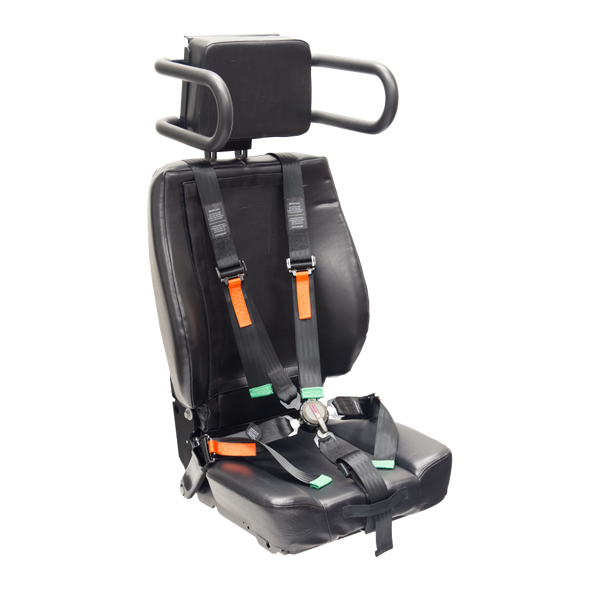

  • Optional head rest can be adjustable and removable as required
  • Seat cushion and covering fabrics selected for Health, Safety and Comfort

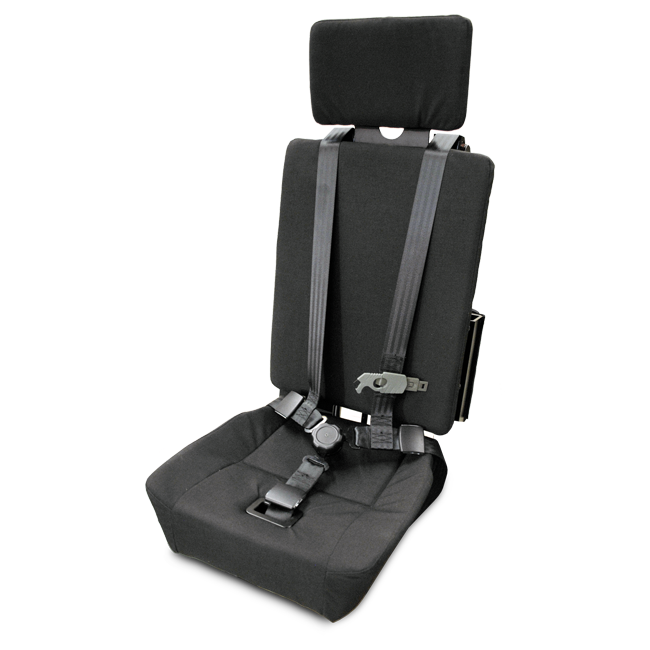

  • 4 or 5-point seatbelts with All-Belts-To-Seat to ensure the occupant remains restrained during all phases of a blast or automotive event.
  • Compliant with applicable FMVSS and ECE requirements
Data Sheet
