HAL Hook & Line Modules

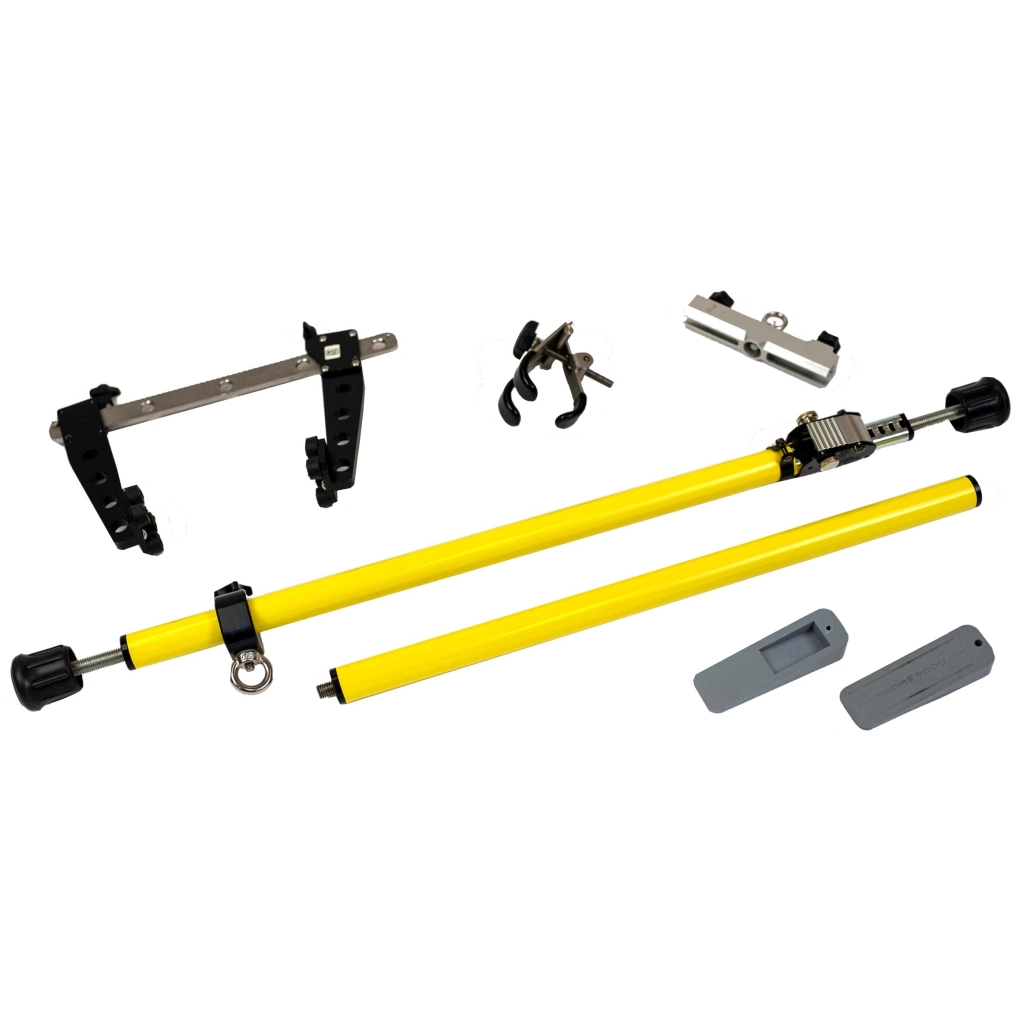

Door Anchor Module

The Door Anchor Module provides the core HAL® function of anchoring and provides numerous options to manage the main line through doorways and attachment of pulleys or carabiners on the likes of doors and door frames.

Bar Anchor
The Extension Bar Anchor is designed to provide a secure anchor point across open areas, such as doorways. The Extension Bar Anchor (alone) spans areas 710 mm (28 in) to 1270 mm (50 in). Attach the extension pole to span distances from 1270 mm (50 in) to 1830 mm (72 in).
The rubber end covers can be removed to reveal spiked ends for optimum security, depending on the target surface. The Extension Bar Anchor can also be used as a support or holdback to jam open doors, elevators, etc.

Bar Clamp Anchor
The sliding bar clamp anchor has 2 adjustable jaws fitted to a steel bar. The bar has 5 holes for anchor points. The jaws have adjustable locking screw handles and are supplied with 2 pairs of snap-on feet fittings: ‘V’ groove and spiked. Each jaw can be reversed to allow clamping outwards. The clamp provides convenient anchor points at doors, window frames and other structures (e.g. pipes).
Both jaws can be positioned at any point along the bar to accommodate different edge thicknesses. Tightening the locking screw handles will clamp the jaws securely to the edge of the frame.
The Bar Clamp Anchor also features a reflective logo (10mm x 10mm), reflecting light from a flashlight.
The Door Stop is a soft rubber wedge used typically to jamb a door in the open position where it is inserted beneath the door and the floor thereby maintaining access.

Door Hinge
The Door Hinge Anchor is placed over door hinges of varying sizes and locked into place using screw adjusters in order to provide a secure anchor point. The Door Hinge also features a reflective logo (10mm x 10mm), reflecting light from a flashlight.

The Internal Pouch 11 is made from rugged, abrasion-resistant fabric and features a mesh pocket on the interior lid, and elastic loops on the interior base. The pouch has a double slider zipper closure. The rear of the pouch features Velcro Hook and two MOLLE straps with snaps to provide a variety of attachment options.

The tool roll is made from rugged, abrasion-resistant fabric, and features an adjustable shoulder strap, and three (3) side release buckles to hold the roll closed. Inside, deep pockets with elastic webbing provide easy access to tools, and Velcro loops help to hold them in place. There is a strip of Velcro loop for
attachment of a pouch. Velcro strips along the sides allow attachment of multiple tool rolls in tandem to form a larger roll.
